Full size / "Renewable energy sources such as solar and wind are changing the way we power our buildings, industries, and grid; yet, they are intermittent, and we want continuous electricity even when the sun goes down or the wind dies down. As a result, energy storage is important to maintaining continuous electricity and allowing energy producers to maximize on moments of over-generation on bright (or windy) days. Lithium-ion batteries are the market leader for short-duration energy storage, however they are not cost effective for extended periods of time." (Source)
Today, Homerun Resources Inc. announced the signing of a Multi-Party Shared Resource/Funds-In Cooperative Research and Development Agreement (“CRADA”) with Alliance for Sustainable Energy LLC, which is the Manager and Operator of the National Renewable Energy Laboratory (“NREL”) under a US Department of Energy Contract, and Babcock & Wilcox Enterprises Inc.
NREL and clean-energy technology firm Babcock & Wilcox (NYSE: BW) have an exclusive intellectual property option agreement to licence the ENDURING particle termal energy storage technology, which uses silica sand to store heat converted from excess renewable electricity.
Established in 1977 and located in Golden, Colorado, NREL is a federally funded research and development center sponsored by the US Department of Energy. With a staff of 2,685 people and a budget of $544.9 million USD (2020), NREL specializes in the research and development of renewable energy, energy efficiency, energy systems integration, and sustainable transportation. NREL has led the technology development using particle-based thermal energy storage aimed at enabling a low-cost technology for long-duration energy storage (“LDES”).
According to today´s news: "This technology is poised to have far-reaching impacts; it has applications in grid storage for renewable integration, and ultimately aims to compete with natural gas. The ENDURING project led by NREL and collaborated with industry partners has developed key components in the storage system and verified their operation mechanism through laboratory prototypes testing and modeling of the component and system performance. The development supports designs of an electric-charging particle heater, a fluidized bed heat exchanger driving a power cycle, and a particle storage design for storing hot particles at 1200°C. An integrated storage system was designed and analyzed for performance and cost to verify the technoeconomic goals of LDES applications."
Silica sand has long been recognized as a stable and inexpensive medium for long-duration (10-100 hours) energy storage. Since last year, the world´s first commercial sand-based thermal energy storage system is in operation in Finland. "Finland isn´t alone in analysing silica´s energy potential," according to a 2022-article: "The National Renewable Energy Laboratory (NREL) is in the late stages of prototype testing a new thermal energy storage technology that uses inexpensive silica sand as a storage medium. Economic Long-Duration Electricity Storage by Using Low-Cost Thermal Energy Storage and High-Efficiency Power Cycle (ENDURING) is billed as a reliable, cost-effective, and scalable solution that can be sited anywhere. Particles are fed through an array of electric resistive heating elements to heat them to 1,200°C (imagine pouring sand through a giant toaster). The heated particles are then gravity-fed into insulated concrete silos for thermal energy storage. The baseline system is designed for economical storage of up to a staggering 26,000 MWh of thermal energy. With modular design, storage capacity can be scaled up or down with relative ease."

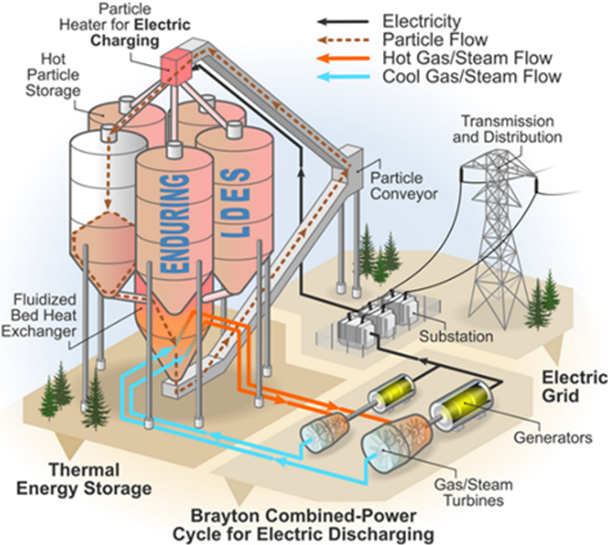

Full size / "Energy storage is key to decarbonizing the economy and reversing the use of fossil fuels for a clean energy future. Long-duration stationary energy storage is becoming a need in improving the resiliency of the grid, integrating more intermittent renewable energy resources such as wind and solar, and providing reliable energy supply to grid or industrial processes... The ENDURING technology works by heating stable, low-cost solid silica particles – which unlike molten salts, are stable at both high and ambient temperatures – to over 1,000 degrees Celsius. This charging process happens when electric power is cheapest, allowing the resulting energy to be stored for several days in large storage modules. To discharge this energy, the hot particles are fed through a heat exchanger, ultimately driving an electric generator. With more abundant renewable electricity available and electrification of the energy sector, thermal energy storage makes more and more sense for the broad decarbonization of the economy. The NREL technology focuses on using low-cost silica sand to provide broad application potentials integrating renewable generation." (Source)
According to "New Thermal Energy Storage Methods Using Hot Sand" (2021): "An innovative new energy storage technology that uses hot sand is being developed as an alternative in the field of renewable energy technologies. That feeling of hot sand on the soles of your feet is what sparked an investigation around the ability of sand to absorb and retain heat, giving rise to new thermal energy storage processes. Finding ways to store excess energy produced by renewable technology is one of the main challenges researchers are trying to overcome. Teams at National Renewable Energy Laboratory (NREL) and an Italian firm, Magaldi Group, recently unveiled new systems to help tackle this precise issue. ENDURING has the capacity to store energy in a similar way to how a battery does and could be a revolutionary moment in the renewable energy industry. The silica sand is superheated reaching temperatures above 1200 degrees C. It is then fed through the ENDURING system and transferred into a concrete silo which is insulated for long-term storage. When the stored energy needs to be released, the sand passes through a heat exchanger which powers turbomachinery with pressurized gas; this, in turn, spins power generators which can then produce new electricity. One of the most attractive features of the ENDURING system is its ability to be installed as part of the grid network. Furthermore, this system could help phase out traditional coal and natural gas plants and could even be placed on existing infrastructure on decommissioned sites respectively. NREL believes that a single baseline, ENDURING system can store up to 26,000 MWh of thermal energy; equivalent to the annual energy consumption of more than 400 households. Furthermore, the technology could be rolled out at costs ranging between 2 to 4 USD per kWh, making it a low-cost thermal energy storage solution."
How Homerun comes into play
The challenge around sand-based energy storage systems is particle stability at 1,200°C and subsequent particle interaction. Silica sand predominately consists of silicon dioxide (SiO2), also known as quartz in its crystalline form. Quartz not only has the lowest potential for weathering as it is a very hard mineral (only diamond, corundum and topaz have a higher Mohs hardness), it is also chemically inert and has a high melting point (1713°C) due to the strong bonding between its atoms. Precisely these properties are highly valued in many industrial applications. However, high-purity silica sand deposits typically have impurities such as iron, aluminium, titanium and other elements which may behave negatively in high-temperature energy storage applications.
Due to Homerun having supply agreements in place with one of the world´s highest purity silica sand deposits, "NREL will test Homerun silica sand to determine the composition and suitability for use in energy storage and assess other applications of silica purification for photovoltaic (PV) glass, PV silicon or glass substrate for perovskite PV cells, and silicon anode for Li-ion batteries," the company stated in today´s news-release and added: "The Parties will analyze the economic benefits of using Homerun´s silica sand for energy storage, including energy arbitrage from energy storage and grid service, processing of the silica sand by using low-cost electricity in energy storage, and generating potential income from processed materials after its use for energy storage (e.g., high-purity silica sand for renewable materials)."
The purpose of the Cooperative Research & Development Agreement ("CRADA") between Homerun, NREL and Babcock & Wilcox as per today´s news: "The general purpose of the CRADA is a collaborative effort to jointly evaluate integrating a silica sand refinement process into the ENDURING Energy Storage Application. NREL, Homerun and B&W have recognized the potential of using the novel energy storage technology to process upgrade Homerun´s silica sand while providing clean reliable energy. This initiative supports Homerun´s goal of refining their silica sand to serve various industrial sectors."
Although Homerun´s silica sand from Bahia, Brazil, has one of world´s highest silica purities and lowest levels of impurities (99.88% SiO2, 48 ppm Fe, 160 ppm Ti in its raw form and 99.98% SiO2, 2.4 ppm Fe, 21.5 ppm Ti after simple washing/scrubbing), the purity may be increased further with advanced processing methods, which typically involves heating the raw sand to high temperatures and applying acid leaching to reduce impurities. Such stand-alone silica sand processing plants not only have high CAPEX but also high OPEX as being very energy intensive to achieve such high temperatures.
The idea behind the collaboration between Homerun, NREL and Babcock & Wilcox is that the sand-based ENDURING energy storage system is already converting excess renewable electricity into heat (which is then stored in the sand for long durations), which in turn may also effectively "process" Homerun´s raw sand into an even higher quality product, especially when combined with acid leaching. By this, Homerun could get its raw sand processed to higher purity levels – to achieve much higher sales prices – without having to finance and built its own processing facility.
Today´s news-release concluded: "The project is designed to support an advanced energy solution in long duration energy storage using particle-based thermal energy storage and overcome market hurdles for using this technology in broad decarbonization applications. It will help define a technology commercialization pathway that currently lacks first-of-its-kind use and lay groundwork for ongoing technology developments capable of enhancing U.S. industry and manufacturing jobs. If the particle thermal energy storage is realized by this collaboration, it can be deployed to train U.S. workers working on this energy solution for long term economic competitiveness. Additionally, particle thermal storage may enhance energy security and resilience by providing a potential low-cost and long-duration ability to overcome blackouts or weather events that may crumple local electric grids."
Excerpts from "Innovative technology for the production of high-purity sand silica by thermal treatment and acid leaching process" (2018): "The production of high purity silica out of natural sand plays a critical role as a starting material in the industry of glass and high grade silicon. In this paper, we expose a novel processing method for the purification of sand silica. This method is a subsequent combination of thermal treatment and acid leaching. Firstly, samples of Tunisian natural sand were submitted to a rapid thermal annealing in an infra-red furnace under O2 atmosphere at fixed temperature and time 1000°C and 1 h, respectively. Subsequently, the samples were soaked in an aqueous acid solution composed hydrofluoric acid and a hydrochloric acid concentration... The results show substantial reduction in all metallic impurities in silica after three successive purification cycles improving the purity from 99.7 to 99.9%."
About National Renewable Energy Laboratory (“NREL")
At the National Renewable Energy Laboratory ("NREL"), the focus is on creative answers to today´s energy challenges. From breakthroughs in fundamental science to new clean technologies to integrated energy systems that power our lives, NREL researchers are transforming the way the nation and the world use energy. www.nrel.gov
About Babcock & Wilcox
Established in 1867, Babcock & Wilcox is a leader and innovator in the energy transition, making net-zero ambitions a reality today for a cleaner tomorrow. With 2,100 employees (2020), revenues of $723 million USD (2021) and its proven clean-energy solutions, the publicly listed company continues to meet the challenges of the ever-changing energy landscape. www.babcock.com
About Homerun Resources
Homerun Resources is focused on the development of its business within the critical and energy materials sectors. With a steadfast commitment to operational excellence, sustainability, and building shareholder value, Homerun is poised to make a lasting impact in these industries. www.homerunresources.com
